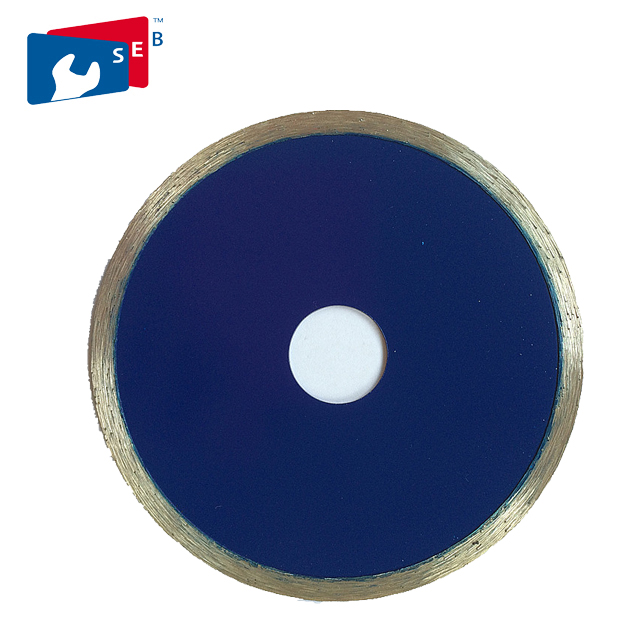

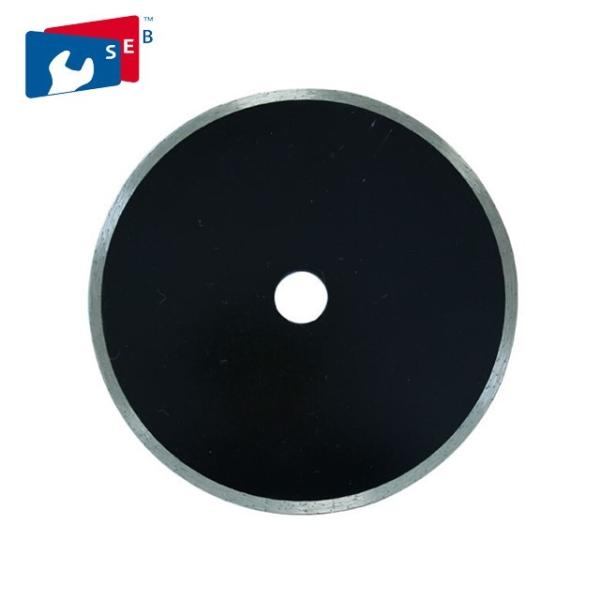

10 inch Diamond Blade for Glass , Wet Continous Rim Cutting Circular Disc
Description:
Product: 10 inch (230mm) wet cutting diamond saw blade for glass
Specification: 230 x 22.23 x 10 x 2.4mm
Finishing: painted (polish mental is ok)
Cutting: wet cutting
Body material: 65Mn
Segment material: alloy powder + diamond powder
Packaging: white box/double blister
Application of diamond segment:
Diamond Segment can be produced for cutting granite, marble, asphalt, tile, concrete, fire-proof materials or for continuous polishing machine. Our diamond segments for large circular saw blades are always manufactured in sandwich design. No matter what the shapes, the aim is to obtain a good cooling and easy flush away the chipping. Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability.
Remark : All saw blade can be customized
| Diameter | Hole | Thickness | Segment size |
| MM | MM | MM | MM |
| 300 (12") | 50/60/25.4mm | 2.2/2.0 | 8/10/12/15*3.0 |
| 350 (14") | 50/60/25.4mm | 2.2/2.4 | 8/10/12/15*3.0 |
| 400 (16") | 50/60/25.4mm | 2.6/2.8 | 8/10/12/15*3.4 |
| 450 (18") | 50/60/25.4mm | 2.8/3.0 | 8/10/12/15*4.0 |
| 500 (20") | 50/60/25.4mm | 2.8/3.0 | 8/10/12/15*4.0 |
| 600 (24") | 50/60/25.4mm | 3.6 | 8/10/12/15*4.6 |
| 700 (28") | 50/60/25.4mm | 4.0 | 8/10/12/15*5.2 |
| 800 (32") | 50/60/25.4mm | 4.5 | 8/10/12/15*6.0 |
| Main feature: |
| 1.Easy and fast cutting, no edge broken. |
| 2.Long lifespan and stable performance. |
| 3.Good cutting result and high efficiency |
| Quality Control: |
| 1.the hardness of the saw blade to ensure the good quality. |
| 2.We check the flatness degree to see if it is up to standard. |
| 3.We also do some cutting experiments to check its using function. |
| 4.Professional manufacturing assembly line. |
Shipping:
1. TNT / FedEx / DHL / UPS for samples or under 45KG wegight goods
, Door to Door.
2. By Air or by Sea for batch goods,from airport(seaport) to
airport(seaport).
3. Customers specifying freight forwarders or not.
4. Production Time: 7 - 10days for samples; 30-35 weeks for batch
goods.
5. Port: Shanghai/Ningbo
|
|
